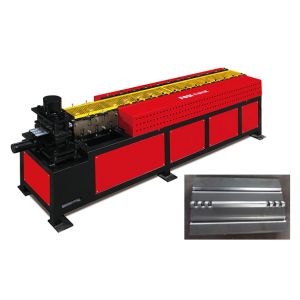

Fire Damper Blade Roll Forming Machine
Fire Damper Blade Forming Machine Brief Introduction
The Fire Damper Blade produced by the roll Forming Machine is the Triple V Blade. The fire damper blade forming machine is a special supporting equipment for the production of fire damper blades, which consists of a manual discharge rack, a cold bend forming machine and hydraulic shearing. The whole machine adopts full computer PLC control and touch screen operation. It can be set to any size according to the operation requirements. It can also be punched on the blade according to the processing requirements, and there is a 4.2mm connecting rod hole. The production line has a maximum processing speed of 15 m/min, a length error of ±0.5 mm, a diagonal error of ±0.8 mm, and a standard rack load of 2T, which can be matched according to customer requirements.
The blade forming machine is suitable for use in the construction site or fire damper production plant. The maximum size can be based on the customer.
The Fire Damper Blade customer requires a custom size, the standard opening size is: 198mm, and the standard molding size is 185mm.
Technology specification of fire damper blade forming machine
The fire damper blade roll forming machine is designed according to 1.5-2.0mm thickness GI Steel. The VCD damper frame profile production line is consisted of uncoiler (manual), leveler roll form machine, hydraulic punching and cutter, hydraulic system, electrical control system, etc.
Basic components
-. UNCOILER 5Tons 1set
- Damper Blade Main roll forming machine 1set
- Hydraulic cutter 1set
- Auto Tearing device 1set
- Run out table 1set
- CNC control system 1set
- Hydraulic system 2 sets
Function Description
- Servo driving, full automation operation
- Beading distance is fixed
- Round beading or Square beading can be selected by client.
- Punching blade holes optional
- Continuous production order model process
- Cut to length
Main parameters of Fire Damper Blade Forming Machine
| Capacity (mm): | 1.5-2.0mm |
| Raw Material | GI Steel, black steel |
| Coil width | 163-203mm |
| Coil weight (mm) | Less than 2000kg |
| Line speed | 0-10m/min |
| Length tolerance | +/-0.5mm |
| Diagonal tolerance | +/-1mm |
| Dimension (mm) | 7000*700*1200 |
| Total power (KW) | 12KW |
Fire Damper Blade
Customized damper can be designed according to client drawing or sample.
